Telescopic Cranes

The telescopic cranes of the company BIM MOSXOS are mounted on vehicles and are available in many types, designed to cover any kind of need.

Their lifting capacity can reach up to 35 tons.

Additionally, they feature a range of optionals such as analogic radio remote control with 4 or 6 motions, hydraulic pipe wrench,hydraulic cable winding system, front stabilizers and double winch speed.

*Depending on the type of vehicle, the types of telescopic crane that can be installed on it are determined. For more information contact the company in order  to determine the type of crane that, in correspondence with your vehicle, will best serve your needs.

GT-3500 BIM MOSXOS telescopic cranes
GT-3500 BIM MOSXOS telescopic cranes
GT-3500 BIM MOSXOS telescopic cranes
GT-3500 BIM MOSXOS telescopic cranes

GT-3500

Lifting Capacity
35 tnm
Net weight
4500 kg
Max Height With 1 Telesc.Boom
9,30 m
Max Height With 2 Telesc.Booms
12,30 m
Wire Rope Speed
24m/min (1 wire) - 6m/min (4 wires)
Pump
130 lit
Winch with negative disc
Yes
Opening Hydraulic Stabilizers
Yes 4
Oil cooler
Yes
Rotation
Slewing Ring

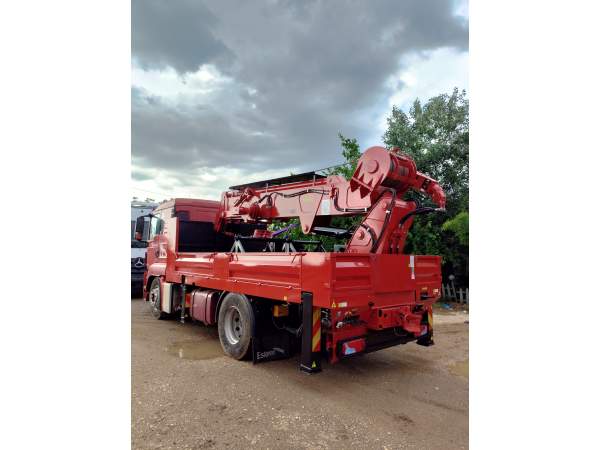

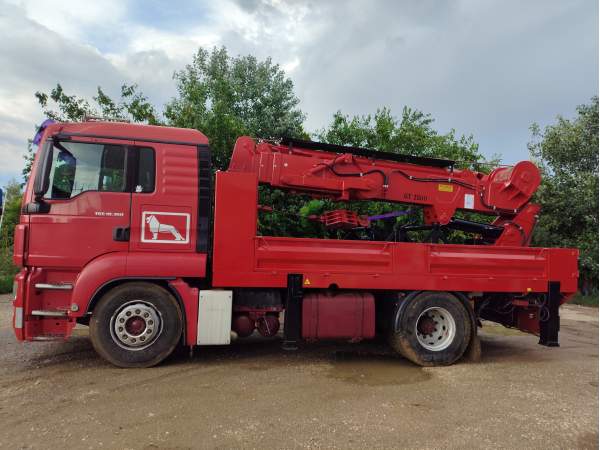

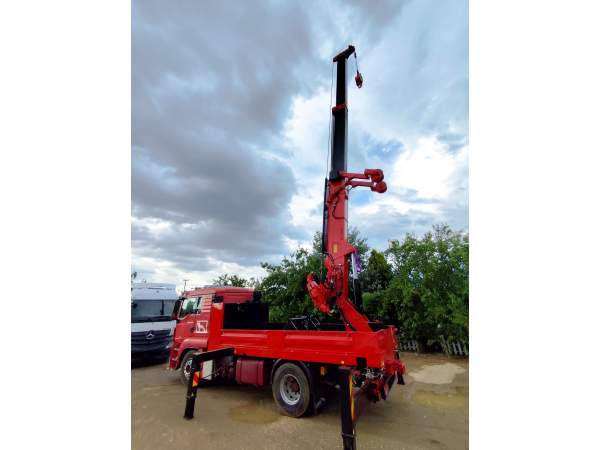

bim mosxos gt2500 teleskopic crane
bim mosxos gt2500 teleskopic crane 07
bim mosxos gt2500 teleskopic crane 06
bim mosxos gt2500 teleskopic crane 01
bim mosxos gt2500 teleskopic crane 03
bim mosxos gt2500 teleskopic crane 04
bim mosxos gt2500 teleskopic crane
bim mosxos gt2500 teleskopic crane

GT-2500

Lifting Capacity
25 tnm
Net weight
3180 kg
Max Height With 1 Telesc.Boom
9,30 m
Max Height With 2 Telesc.Booms
12,30 m
Wire Rope Speed
24m/min (1 wire) - 6m/min (4 wires)
Pump
110 lt
Winch with negative disc
Yes
Opening Hydraulic Stabilizers
Yes 4
Oil cooler
Yes
Rotation
Slewing Ring

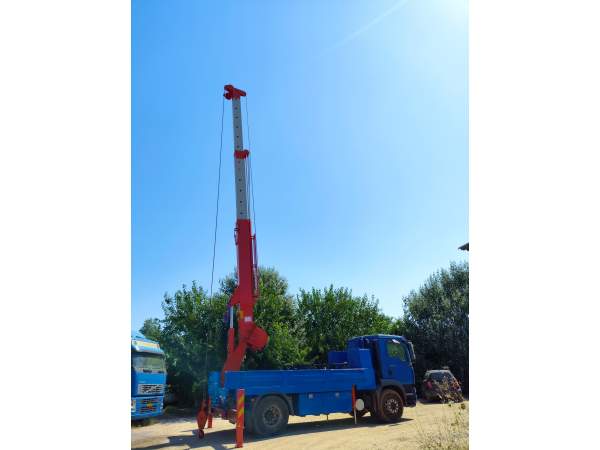

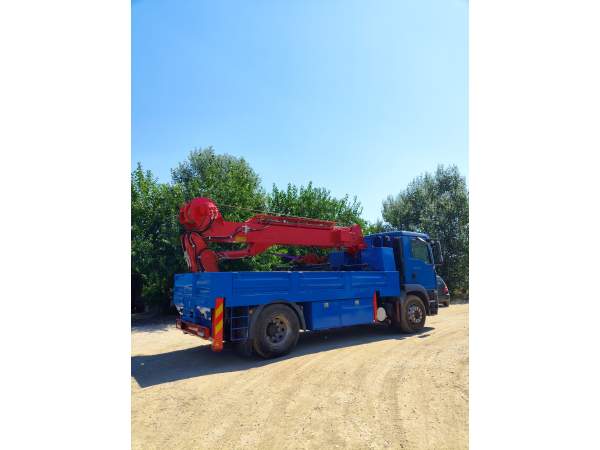

bim mosxos gt1800 telescopic crane 01
bim mosxos gt1800 telescopic crane 02
bim mosxos gt1800 telescopic crane 03
bim mosxos gt1800 telescopic crane 04
bim mosxos gt1800 telescopic crane 05
bim mosxos gt1800 telescopic crane 06

GT-1800

Lifting Capacity
18 tnm
Net weight
2950 kg
Max Height With 1 Telesc.Boom
9,30 m
Max Height With 2 Telesc.Booms
12,30 m
Wire Rope Speed
24 m/min (1 wire) - 8m/min (3 wires)
Pump
110 lt
Winch with negative disc
Yes
Opening Hydraulic Stabilizers
Yes
Oil cooler
Yes
Rotation
Slewing Ring
bim mosxos gt1600 telescopic crane 06
bim mosxos gt1600 telescopic crane 07
bim mosxos gt1600 telescopic crane 01
bim mosxos gt1600 telescopic crane 02
bim mosxos gt1600 telescopic crane 03
bim mosxos gt1600 telescopic crane 04
bim mosxos gt1600 telescopic crane
bim mosxos gt1600 telescopic crane

GT-1600

Lifting Capacity
16 tnm
Net weight
2750 kg
Max Height With 1 Telesc.Boom
9,30 m
Max Height With 2 Telesc.Booms
12,30 m
Wire Rope Speed
12-24 m/min
Pump
110 lt
Winch with negative disc
Yes
Opening Hydraulic Stabilizers
Yes
Oil cooler
Yes
Rotation
Slewing Ring
bim mosxos gt1200 telescopic crane 01
bim mosxos gt1200 telescopic crane 02
bim mosxos gt1200 telescopic crane 03
bim mosxos gt1200 telescopic crane 04
bim mosxos gt1200 telescopic crane 05
bim mosxos gt1200 telescopic crane 07

GT-1200

Lifting Capacity
12 tnm
Net weight
2350 kg
Max Height With 1 Telesc.Boom
9,30 m
Max Height With 2 Telesc.Booms
12,30 m
Wire Rope Speed
15-30 m/min
Pump
100 lt
Winch with negative disc
Yes
Opening Hydraulic Stabilizers
Yes
Oil cooler
Yes
Rotation
Slewing Ring
bim mosxos gt1000 telescopic crane 01
bim mosxos gt1000 telescopic crane 02
bim mosxos gt1000 telescopic crane 03

GT-1000

Lifting Capacity
10 tnm
Net weight
2100 Kg
Max Height With 1 Telesc.Boom
9,30 m
Max Height With 2 Telesc.Booms
12,30 m
Wire Rope Speed
17 - 34 m/min
Pump
80 lt
Winch with negative disc
Yes
Opening Hydraulic Stabilizers
Yes
Oil cooler
No
Rotation
Slewing Ring
bim mosxos gt800 telescopic crane 01
bim mosxos gt800 telescopic crane 02
bim mosxos gt800 telescopic crane 03

GT-800

Lifting Capacity
8 tnm
Net weight
1780 kg
Max Height With 1 Telesc.Boom
9,30 m
Max Height With 2 Telesc.Booms
12,30 m
Wire Rope Speed
17-34 m/min
Pump
80 lit
Winch with negative disc
Yes
Opening Hydraulic Stabilizers
Yes
Oil cooler
No
Rotation
Slewing Ring
