Loaders for Tractors

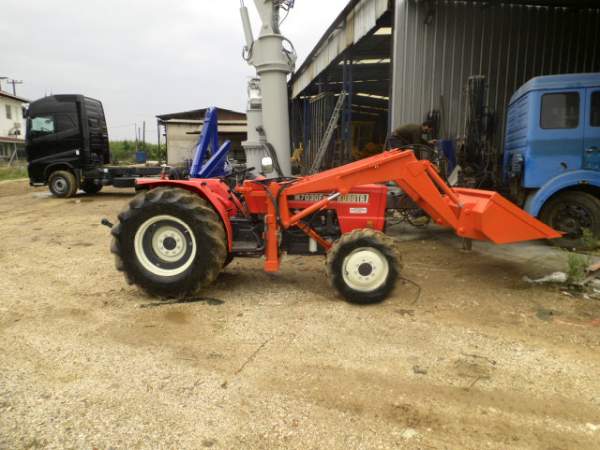

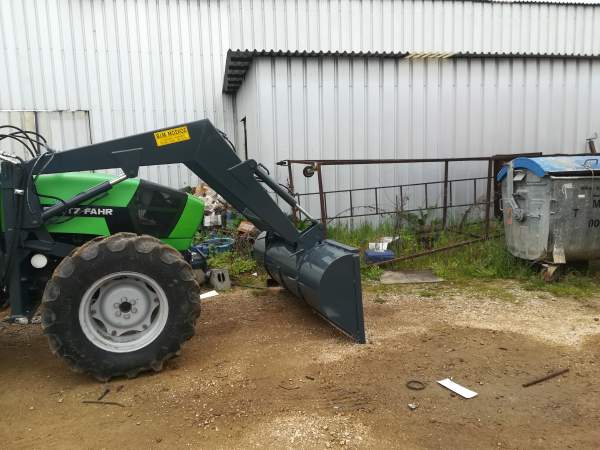

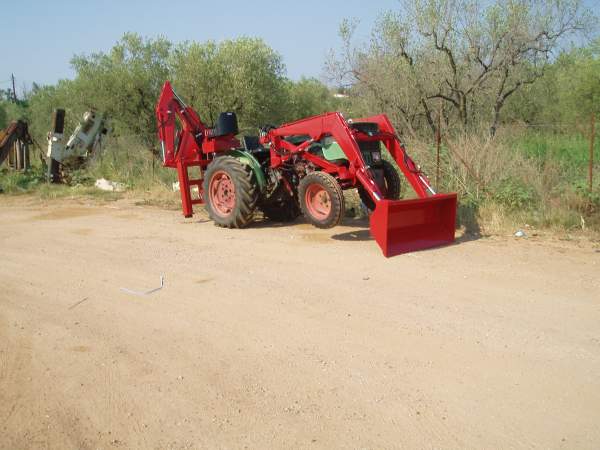

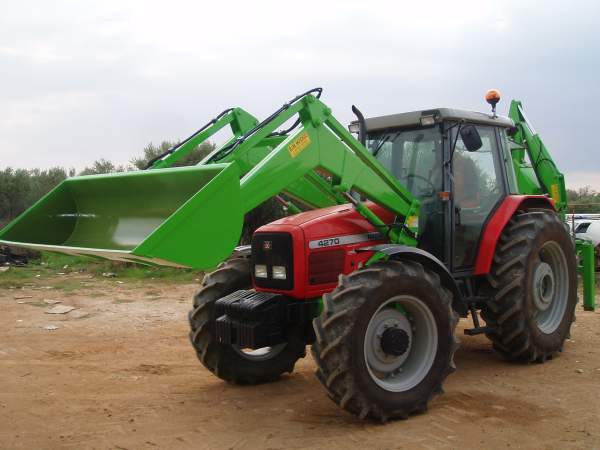

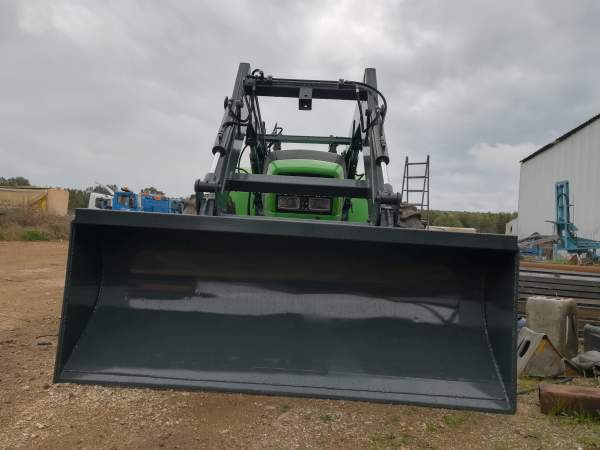

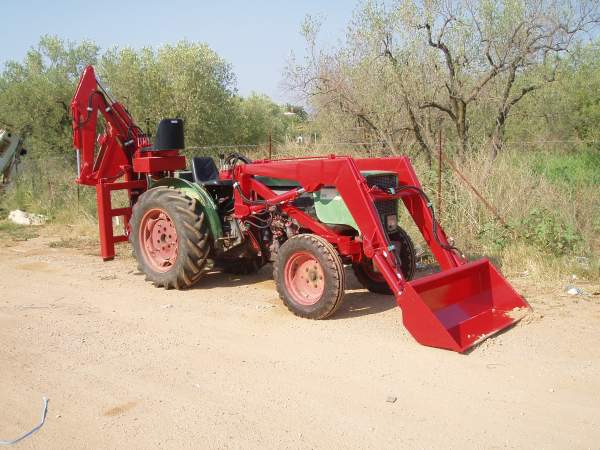

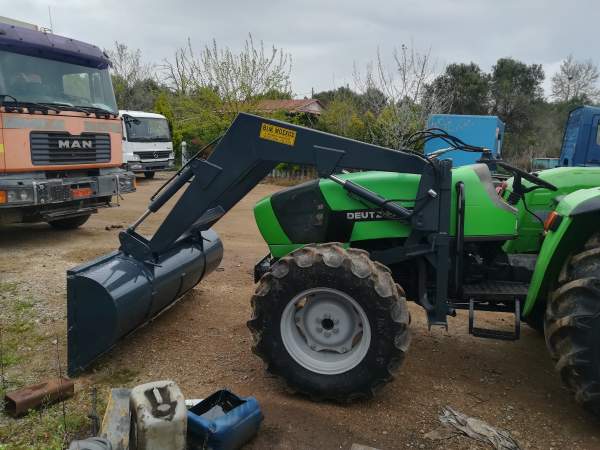

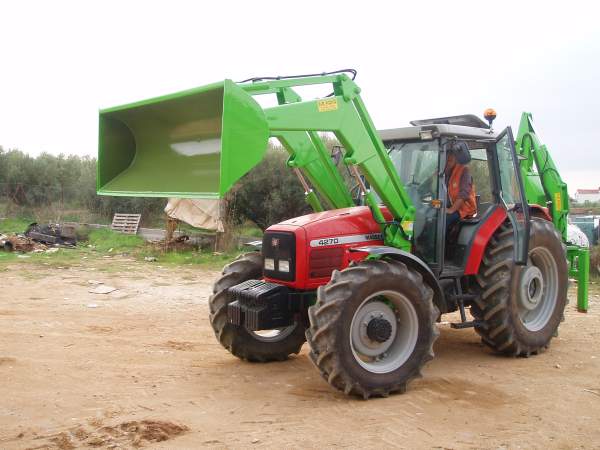

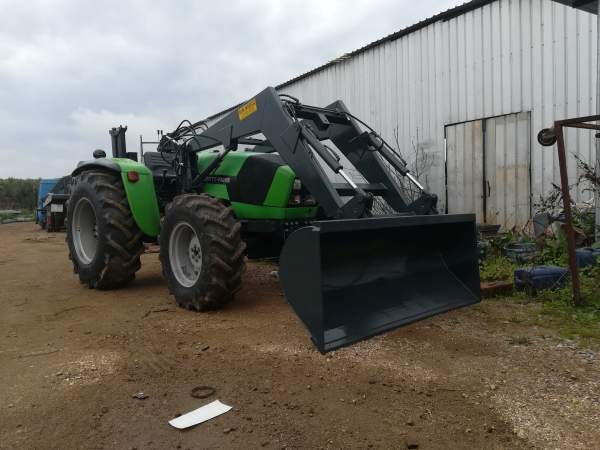

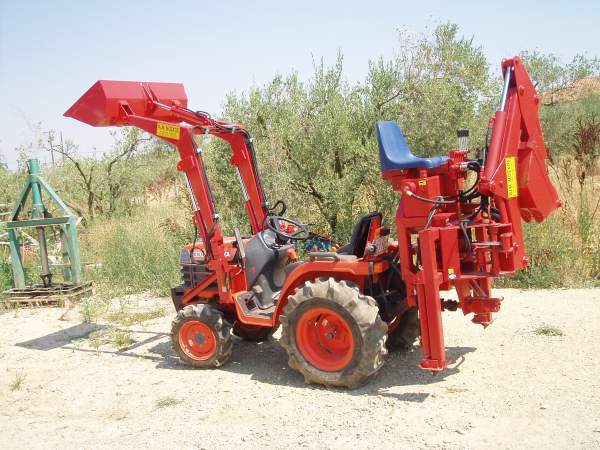

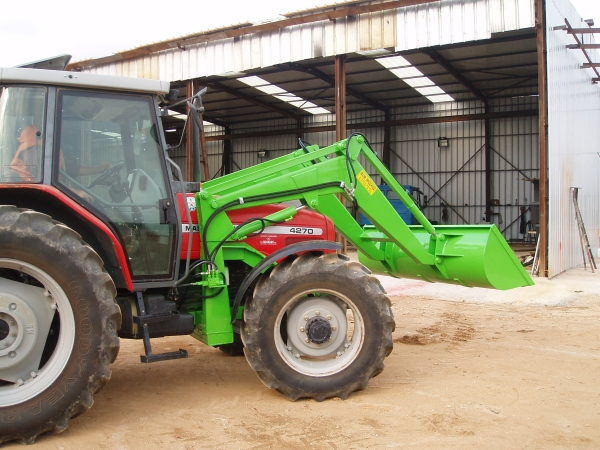

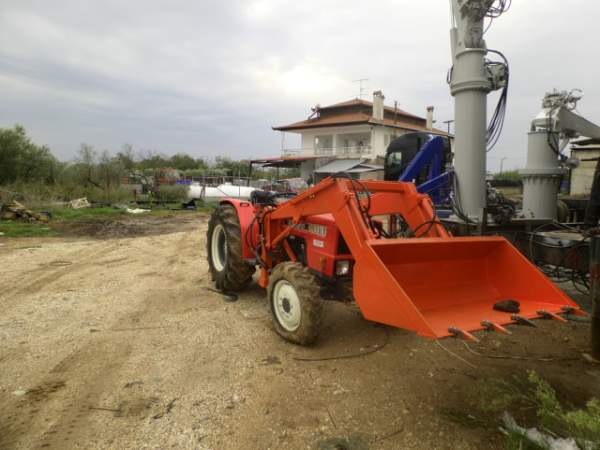

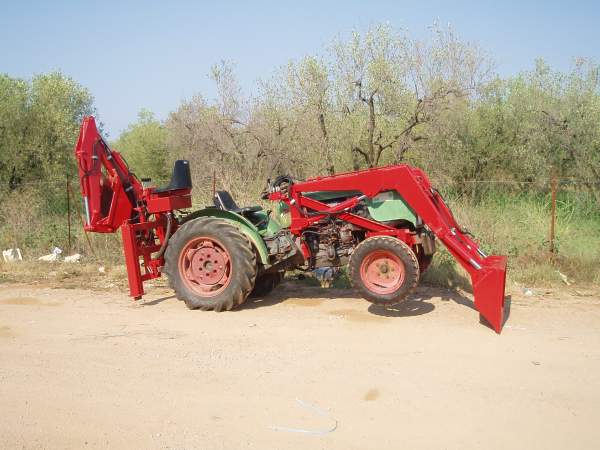

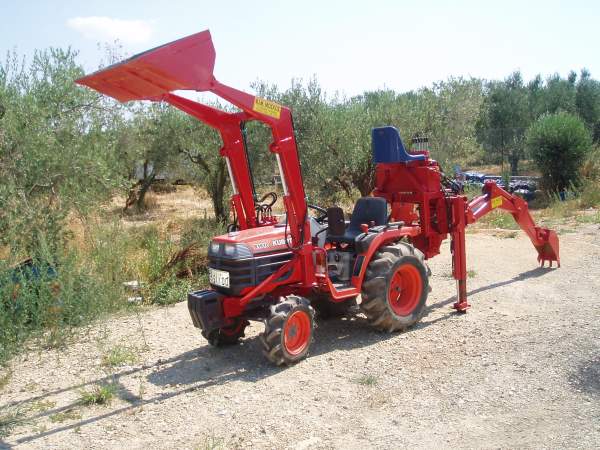

BIM MOSXOS tractor loaders (KT Series), are of two types, with "teeth" or straight, and are intended for any type of loading and unloading work with a lifting capacity on the ground up to 2200 kg. The ideal type of machine for you also depends on the horsepower of the tractor it is going to be mounted on. Not all loaders can be fitted to all vehicles. Figures vary based on tractor size.

*The calculations refer to operation at 195 bar and 50 lt/min. Dimensions should not be taken into account for calculations.

KT-120 loaders for tractors bim mosxos
KT-120 loaders for tractors bim mosxos
KT-120 loaders for tractors bim mosxos
KT-120 loaders for tractors bim mosxos

KT-120

Suggested Tractor
+100 hp
Max Height with Horizontal Loader
3,70 m
Max Loading Height
3,05 m
Loader Angle
52°
Loader Angle on Ground
47°
Excavation Depth
0,20 m
Lifting Capacity on Ground
2200 kg
Lifting Capacity en Route
1900 kg
Lifting Speed
4,9 s
Loader Unloading Speed
2,3 s
Net Weight (Without Accessories)
690 kg
KT-70 loaders for tractors bim mosxos
KT-70 loaders for tractors bim mosxos
KT-70 loaders for tractors bim mosxos
KT-70 loaders for tractors bim mosxos

KT-70

Suggested Tractor
60 - 80 hp
Max Height with Horizontal Loader
3,70 m
Max Loading Height
3,50 m
Loader Angle
52°
Loader Angle on Ground
47°
Excavation Depth
0,20 m
Lifting Capacity on Ground
1800 kg
Lifting Capacity en Route
1650 kg
Lifting Speed
4,7 s
Loader Unloading Speed
2,1 s
Net Weight (Without Accessories)
570 kg
KT-40 loaders for tractors bim mosxos
KT-40 loaders for tractors bim mosxos
KT-40 loaders for tractors bim mosxos

KT-40

Suggested Tractor
35 - 50 hp
Max Height with Horizontal Loader
3,30 m
Max Loading Height
3,05 m
Loader Angle
52°
Loader Angle on Ground
47°
Excavation Depth
0,20 m
Lifting Capacity on Ground
1600 kg
Lifting Capacity en Route
1400 kg
Lifting Speed
3,6 s
Loader Unloading Speed
1,5 s
Net Weight (Without Accessories)
420 kg
KT-30 bim mosxos loaders for tractors
KT-30 bim mosxos loaders for tractors

KT-30

Suggested Tractor
25 - 35 hp
Max Height with Horizontal Loader
2,45 m
Max Loading Height
2,20 m
Loader Angle
60°
Loader Angle on Ground
55°
Excavation Depth
0,15 m
Lifting Capacity on Ground
730 kg
Lifting Capacity en Route
630 kg
Lifting Speed
4,5 s
Loader Unloading Speed
2,7 s
Net Weight (Without Accessories)
220 kg
KT-15 bim mosxos loaders for tractors
KT-15 bim mosxos loaders for tractors

KT-15

Suggested Tractor
10 - 18 hp
Max Height with Horizontal Loader
1,95 m
Max Loading Height
1,60 m
Loader Angle
35°
Loader Angle on Ground
25°
Excavation Depth
0,15 m
Lifting Capacity on Ground
660 kg
Lifting Capacity en Route
570 kg
Lifting Speed
4,5 s
Loader Unloading Speed
2,5 s
Net Weight (Without Accessories)
150 kg
