AKT-1600
A
3,60 m
B
16,00 m
C
13,15 m
D
6,30 m
Net Weight
3.300 kg
Rotation
270°
On Trailers

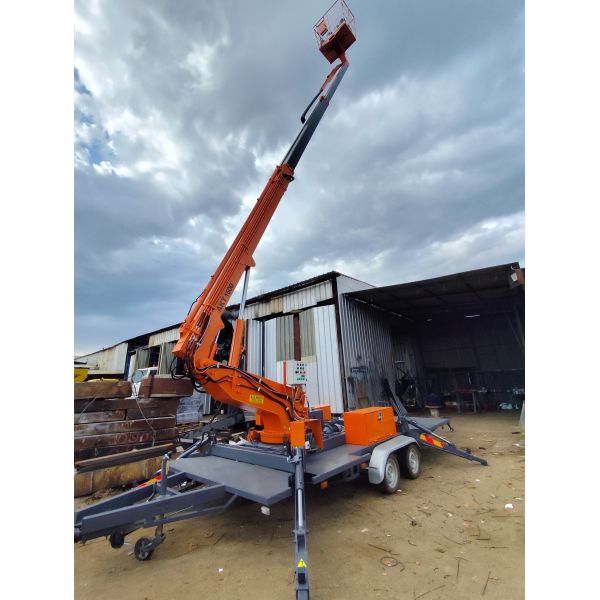

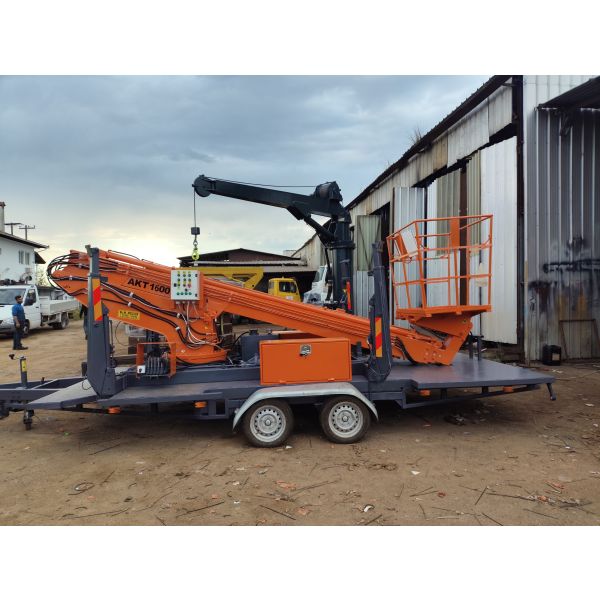

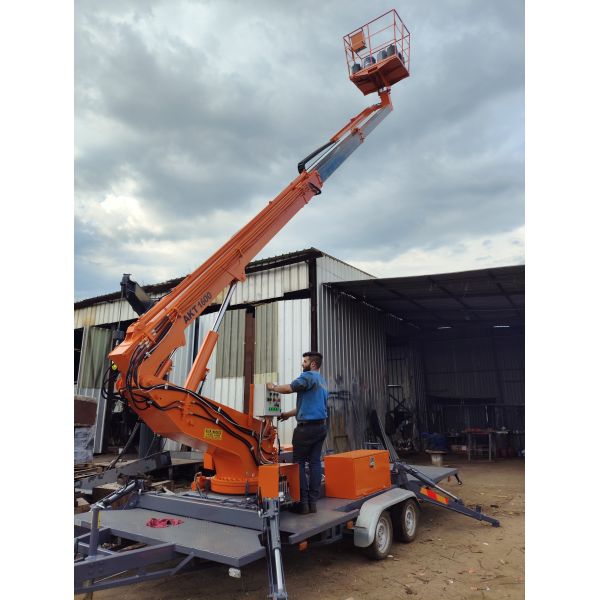

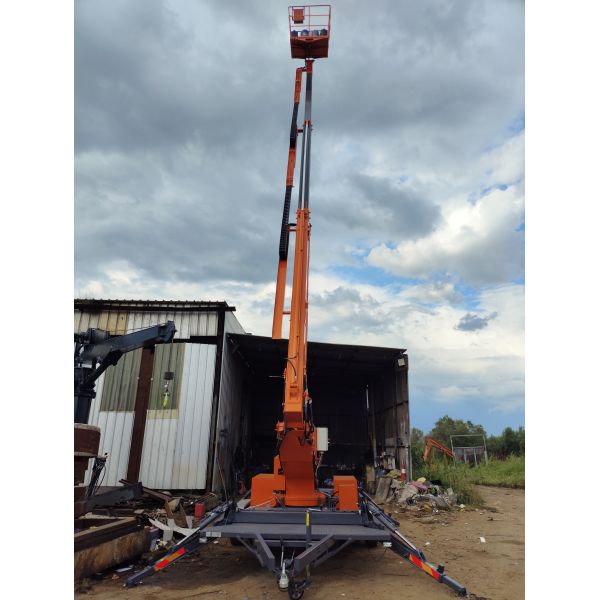

The aerial platforms mounted on trailer of B.I.M. MOSXOS (AKT Series) are designed in 3D Cad Software, in order to meet all the needs of our customers and at the same time to be safe, affordable, fast and easy to use. They have the following specifications:
- Working height up to 16 meters
- 200 kg lifting capacity.
- 4 stabilizers for greater stability
- Hydraulic up-down operation

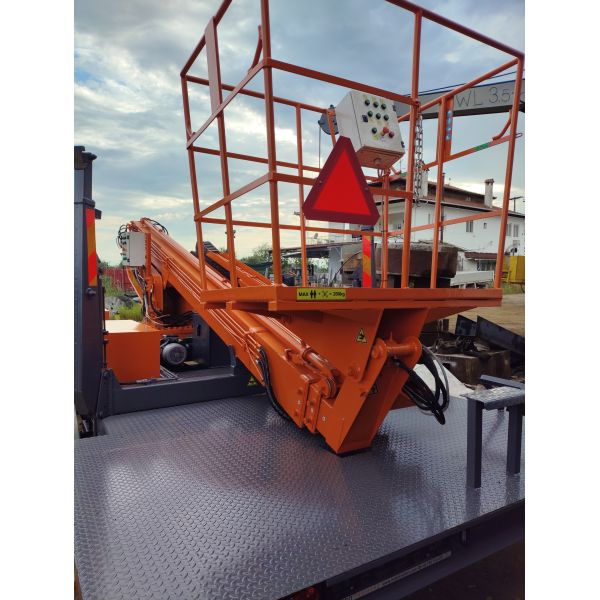

- Basket dimensions: 1.10 x 0.65 x 1.10 meters
- Security system
AKT-1400
A
3,60 m
B
14,20 m
C
12,10 m
D
6,30 m
Net Weight
3.000 kg
Rotation
270°
AKT-1200
A
3,40 m
B
12,10 m
C
9,25 m
D
6,30 m
Net Weight
2.600 kg
Rotation
270°
AKT-1000
A
3,00 m
B
10,15 m
C
8,05 m
D
6,30 m
Net Weight
2.000 kg
Rotation
270°
